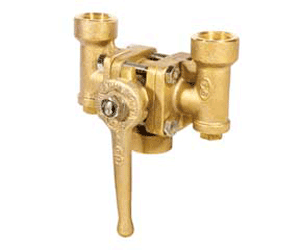

Bronze Divert Valve
Service Cryogenic Liquid & Vapor Gas
Type 3-Way
Face type General Casting
Seat Type Soft seat
Ends PT 1/2

Design Pressure 3.0 MPa
Design Temperature -196 ~ +75℃
Kind of Fluid LO2,LN2,LAr,LCO2,LNG,LC2H4
Hydrostatic Test Pressure 3.8 MPa
Pneumatic Test Pressure 3.3 MPa
Products of Size 1/2" ~ 1 1/2" (15mm through 40mm)
No Parts Material No Parts Material
1
2
3
4
5
6
7
8
9 		Body
Cap
Ball
Ball seat
O-ring
Stem
Gland packing
Gland ring
Bearing 		BC6
BC6
BC6
SUS304
C4622B
PCTFE
SUS304
SUS304
R-PTE 		10
11
12
13
14
15
16
17
18 		Stem bush
Spring Washer
Nut
Lever
Bolt
Plug bolt
Nut
Gasket
Liner 		SUS304
SUS304
SUS304
BC6
SUS304
C3771BD
SUS304
R-PTFE
R-PTFE
SIZE L H T W1 W2
20A 115 100 172 70 30
25A 135 125 175 76 40
40A 200 165 183 109 54
SIZE N-1 N-2 N-3 Φ
3/4˝ 20A) 3/4˝ PT) 3/4˝ PT) 3/4˝ PT) 15mm
1˝ 25A) 1˝ PT) 1˝ PT) 1˝ PT) 20mm
1,1/2˝ 40A) 1,1/2˝ PT) 1,1/2˝ PT) 1,1/2˝ PT) 31mm
Size : 3/4"(20mm), 1"(25mm), 1-1/2"(40mm)
Ends : Screwed end
Maximum Inlet pressure : Up to 30bar(450PSI)
Temperature range : -196°C ~75°C(325°F ~167°F)
Service : Liquefied and vaporized gases of Natural Gas, Oxygen, Nitrogen, Ethylene, Carbon dioxide, Argon and other insert gases
Cleaned for liquid Oxygen service per CGA G-4.1
일명삼방변(THREE-WAY VALVE)이라고도 하며 단순한 GAS의 흐름 방향을 바꾸는 역할을 하는 삼방밸브와는 달리 양쪽에 각각의 안전밸브 붙여 대기온에서 진공 파괴 되었을 때 용량을 감당하도록 용량선정이 되어있으며 TANK주위에 화재가 나고 진공이 파괴된 경우 탱크의 표면온도가 800℃가 되었을 때 증발되는 가스의 량을 감당하도록 용량을 선정 설비하였다.

(This is called THREE-WAY VALVE and is different to THREE VALVE that changes the simple flow direction of GAS. When the safety valve in each is broken on air temparature, this has the capacity standard for taking capacity. And this has a rupyurepan capacity for taking the evaporated gas hen the surface temperature comed 800℃ after a fire occurs around tank and the vcacuum is broken.)
These Cryogenic 3-way diverter valves are designed to protect the tank from excess over pressure in the event of fire or other emergencies.
They are especially useful in installations where space and cost limitations are important. These valves are adjustable with adjusting screw and locknut for pressure setting.
