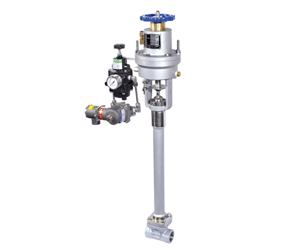

LO2 Emergency Globe Valve
Service Cryogenic Liquid Gas
Type Emergency Globe
Face type Precision casting
Seat Type Soft seat for Cryogenic
Ends Socket Weld 1

Design Pressure 1.0 ~ 3.0 MPa
Design Temperature -196 ~ +75℃
Kind of Fluid LN2, LO2, Lar, LCO2, LNG
Hydrostatic Test Pressure 1.25 ~ 3.7 MPa
Pneumatic Test Pressure 1.1 ~ 3.3 Mpa
Products of Size

25A(1"), 50A(2")
No Parts Material No Parts Material
1
2
3
4
5
6
7
8
9
10
 Body
Bonnet
Disc
Stem
Disc Stem Ring
Disc Packing
Seat Washer
Bonnet Bolt Nut
O-Ring
Adapter		 SCS13
SCS13
SUS304
SUS304
SUS304
PCTFE
SUS304
SCS13
VITON
PTFE 		11
12
13
14
15
16
17
18
19
20

Packing
Gasket
Cylinder
Piston
Indicator
Spring
Cylinder Cover
Fuse Metal
Plug

PTFE
PTFE
V#7020
SUS304
SUS304
SUS304
SCS13
FAI10091
BRASS
Size H D D1 L S B I W Cv
50A 255 50 55 140 61.0 16.5 21 122 38
